  FLOOR SOLUTIONS EPOXY GROUP EPOFLOOR COAT TEXT (14+3kg)

PRODUCTS

EPOFLOOR COAT TEXT (14+3kg)Double Component Low Solvent Content Special Epoxy Resin Based Coating Material With Texture

APPLICATION FIELD

It may be used as final fine coat on floors that are required to be water-proof, non-dusting, and chemically and mechanically resistant. Provides an ideal floor system for schools, workshops, cooling cells, galleries and locker rooms.

REQUIREMENTS

  • Has high chemical and mechanical strength.
  • Resistant to abrasion and sliding.
  • Applied easily.
  • Fluid.
  • It is economical.
  • Water impermeable.
  • Allows obtaining of a bright final coat.
  • A non-sliding surface may be obtained.
  • It is free of Volatile Organic Compounds (VOC solvents).

TECHNICAL VALUES

Material Structure

Epoxy Resin

Density, g/cm³

1800 ± 200

Solvent

< % 10 (by volume)

Thinning

It shall not be thinned

Adhesion Strength, N/mm2

> 1,5 (by shearing the concrete)

Shore D Hardness

~ 76 (7 days / 23 °C)

Recommended Thickness, mm

0,2 mm

Taber Abrasion Test, mg (1 kg, CS 10, 1000 d)

~ 80 mg

DETAILS OF CURING

Humidity (N.O.) and Temperature

Pedestrian Traffic

Light Traffic

Full Curing Period

N.O. % 60   +10 °C

16 hours

3 days

10 days

N.O. % 60   +20 °C

13 hours

2 days

7 days

N.O. % 60   +30 °C

10 days

1 day

5 days

CHEMICAL STRENGTH

Resistant against: Gasoline, beer, cyclohexanol, diesel oil, ethanol 10%, ethylene glycol, glycerine, milk, sodium chloride solution 3-30%, sodium hydroxide 10%, olive oil, paraffin, petroleum, castor oil, silicone oil, turpentine, water and soap.

Partially resistant against: Butanol, ethanol, methylisobutylketone, perchlorethylene and xylene.

* Discolouration may occur due to the effect of the chemicals. This study is performed at room temperature. High temperature values and/or chemical mixtures may affect chemical strength.



MSDS - Safety Data Sheet Ürünün Güvenlik Bilgi Formunu görüntülemek ve indirmek için tıklayınız. TDS - Technical Information Form Ürününün Teknik Bilgi Formunu görüntülemek ve indirmek için tıklayınız.

APPLICATION

SURFACE PREPARATION

  • Concrete sub-surfaces shall be clean, dry and free of any foreign material such as dirt, oil, grease, coating and surface curing materials, etc.
  • Also, they shall be solid and have adequate compressive strength (at least 25 N/mm2), and their tensile strength shall be at least 1,5 N/mm2.
  • The cement sub-surfaces shall be prepared so that a surface with open pores shall be obtained by removing the grout with abrasive equipment.
  • Weak concrete parts shall be removed from the surface, eyelet holes and holes shall be closed completely. Repairs of sub-surfaces, filling of holes and correction of the surface are made with the mortar obtained by mixing the EPOFLOOR PRİMEL primer with silica sand of 0.1 mm - 0.3 mm thickness.
  • Concrete or screed surfaces shall be primed and levelled to ensure a smooth surface.
  • The bumps on the surface shall be corrected by abrading. All dust and loose particles shall be removed from the surface prior to application of the product, preferably with a brush and/or vacuum cleaner.

APPLICATION CONDITIONS

  • Humidity content of the surface shall be below 4%. Test method: CM measurement or oven drying method (Moisture meter)
  • Relative air humidity shall be 80% maximum.
  • Take care against dewing and condensation.
  • Dewing and condensation of water vapour on untreated floors or recently coated floors damage the coating, and cause blisters on the coating. In order to prevent this, the temperature of the surface and the floor that has not been cured yet shall be at least 3 °C higher than the dewing point.
  • Surface Temperature: Minimum +10°C, maximum +30°C
  • Ambient Temperature: Minimum +10°C, maximum +30°C
  • Material Temperature: Minimum +10°C, maximum +30°C

PREPARATION of the MORTAR

  • Before mixing, Component A shall be stirred mechanically on its own.
  • After pouring component B to the component A, it shall be mixed with a 300-400 rpm mixer (for about 3 minutes) until a homogeneous mixture is achieved.
  • Then, silica sand of 0.1 mm – 0.4 mm and other additives, if required, shall be added and it shall be mixed again until a homogeneous mixture is achieved.
  • To ensure that the mixture is obtained fully, take the materials to another vessel and mix again for 1 minute.
  • In order to minimize the air-entrainment, avoid mixing excessively.

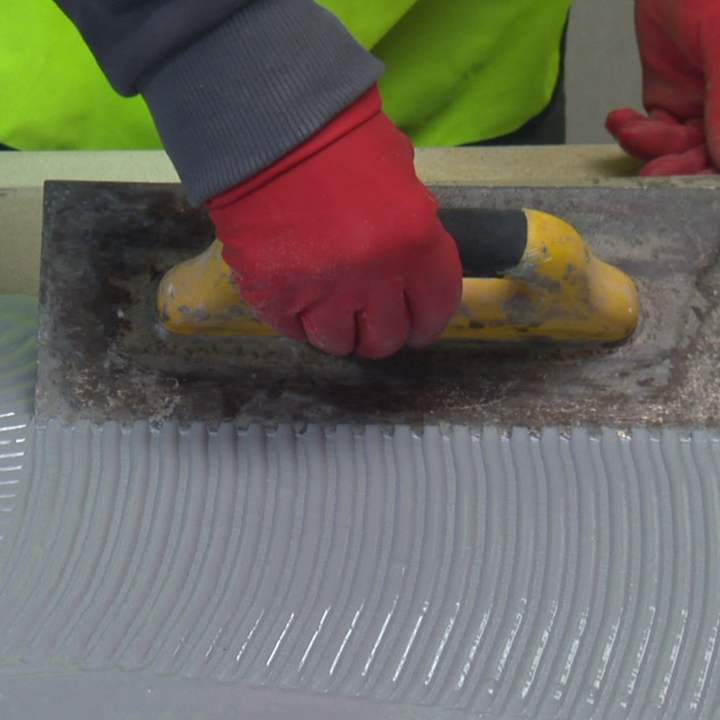

  • As Coating: EPOFLOOR COAT TEXT may be applied with a rake or toothed trowel and may be textured with a roll with porocene texture. Orange peel pattern is applied in the final coating (transverse direction).

SYSTEM STRUCTURE

  • Protection of Concrete Floors (Painting): Applying with a brush
    • Primer: 1 coat of EPOFLOOR PRIMEL
    • Coating: 1 coat of EPOFLOOR COAT TEXT



CONSUMPTION

  • Coating System:
    • Primer: EPOFLOOR PRIMEL 0.3 kg/m2 – 0.5 kg/m2
    • Roll Coating: 1 coat of EPOFLOOR COAT TEXT 0.5 kg/m2 – 0.7 kg/m2 apply for each coat.
These values are theoretical and do not include the additional materials required due to surface porosity, profile, differences in levelling and losses.

Consumption: Approx. 0.5-0.7 kg/m2 for coating system

PACKAGING

25 kg Set,

Component A: 14 kg bucket,
Component B: 3 kg bucket

(delivered in pallets or as sling-bags upon request.)





STORING

1 Year Shelf Life*

*Açılmamış orijinal ambalajlarında, serin ve kuru ortamda, dona ve direkt güneş ışığına maruz kalmayacak şekilde

CERTIFICATE OF CONFORMITY

Complies with TS EN 1504-2 / April 2008 standard

RECOMMENDATION

  • Do not allow ponding while priming.
  • Newly applied product shall be protected against humidity, condensation and water at least for 24 hours.
  • Storage conditions shall be considered while it is transported.
  • Work clothing, protective gloves and goggles conforming with the Occupational Health and Safety Rules shall be used during the application.
  • Consult a physician immediately in case of swallowing.
  • Food and drinks shall not be allowed in application areas.
  • Shall be stored away from the children.
  • Do not go beyond the application field and the rules.
  • For detailed information, please request the security data sheet.
  • Contact us for your technical questions and for your questions about all other application conditions.
