  THERMAL INSULATION SOLUTIONS ORANGE PACKAGE SYSTEM TURUNCU PAKET® EPS ISI YALITIM LEVHASI

PRODUCTS

TURUNCU PAKET® EPS ISI YALITIM LEVHASIEPS Thermal Insulation Board (Grey)

APPLICATION FIELD

Used for external thermal insulation of building walls, thermal insulation applications on terraces and pitched roofs, and thermal insulation applications in cold storage facilities, particularly in Passive House applications.

REQUIREMENTS

  • Provides better thermal insulation performance compared to white thermal insulation boards.
  • No gases harmful to human health or the environment are used during production.
  • Due to its high flexibility, it does not break or crumble during cutting and can be easily applied to the wall.
  • It does not undergo dimensional changes over time on the applied surface.

TECHNICAL VALUES

Type

EPS 40

 EPS 50 EPS 60

Thermal Conductivity Coefficient

0,035 W/m.K

 0,033 W/m.K 0,03 W/m.K

Length Tolerance

L2 ± 2 mm

 L2 ± 2 mm L2 ± 2 mm

Width Tolerance

W2 ± 2 mm

 W2 ± 2 mm W2 ± 2 mm

Thickness Tolerance

T1 ± 1 mm

 T1 ± 1 mm T1 ± 1 mm

Squareness Tolerance

S2 ± 2 mm/1000 mm

 S2 ± 2 mm/1000 mm S2 ± 2 mm/1000 mm

Surface Flatness Tolerance

P5 ± 5 mm

 P5 ± 5 mm P5 ± 5 mm
Dimensional Stability at 23°C and 50% Relative
Humidity

DS(N)2

 DS(N)2 DS(N)2
Dimensional Stability Under Specified
Temperature and Relative Humidity Conditions

-

 - (DS70,-)1

Compressive Stress at 10% Deformation CS(10)

40 kPa

 50 kPa 60 kPa

Bending Strength m

BS 60

 BS 75 BS 100

Tensile Strength (TR)

100 kPa

 100 kPa 100 kPa
Long-Term Water Absorption by Total
Immersion

WL(T)5

 WL(T)5 WL(T)5
Long-Term Water Absorption by Partial
Immersion
 WL(P)0,5 WL(P)0,5 WL(P)0,5

Reaction to Fire Class

 E E E



MSDS - Safety Data Sheet Ürünün Güvenlik Bilgi Formunu görüntülemek ve indirmek için tıklayınız. TDS - Technical Information Form Ürününün Teknik Bilgi Formunu görüntülemek ve indirmek için tıklayınız.

APPLICATION

SURFACE PREPARATION

  • The surface to be applied must be thoroughly cleaned of formwork oil, dust, paint, and any substances that may reduce adhesion. Before application, cracks and holes must be repaired using the same material or suitable Entegre Repair Mortars.
  • Uygulama öncesi çatlak ve deliklerin tamiri, aynı malzeme veya uygun Entegre Tamir Harçları ile yapılmalıdır.

APPLICATION

  • The thermal insulation boards are placed into the starter profile to ensure a straight line.

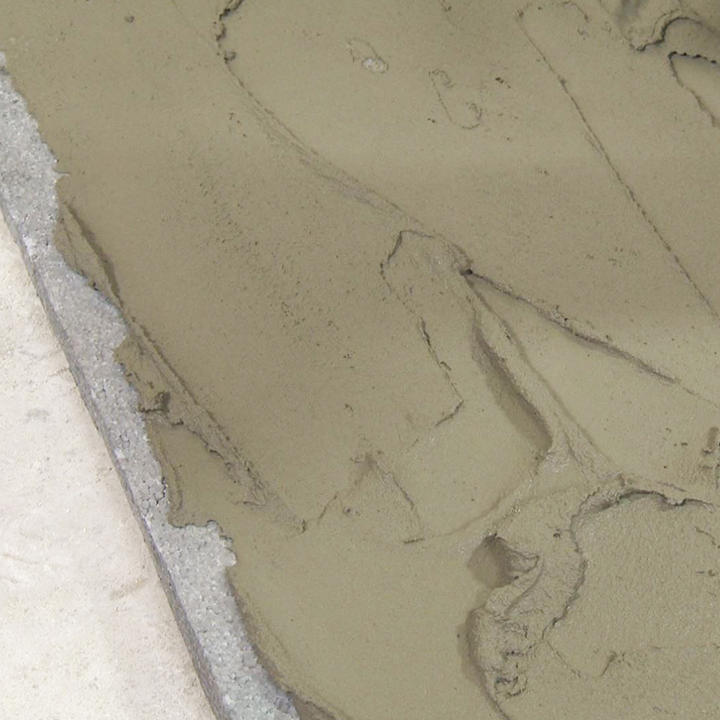

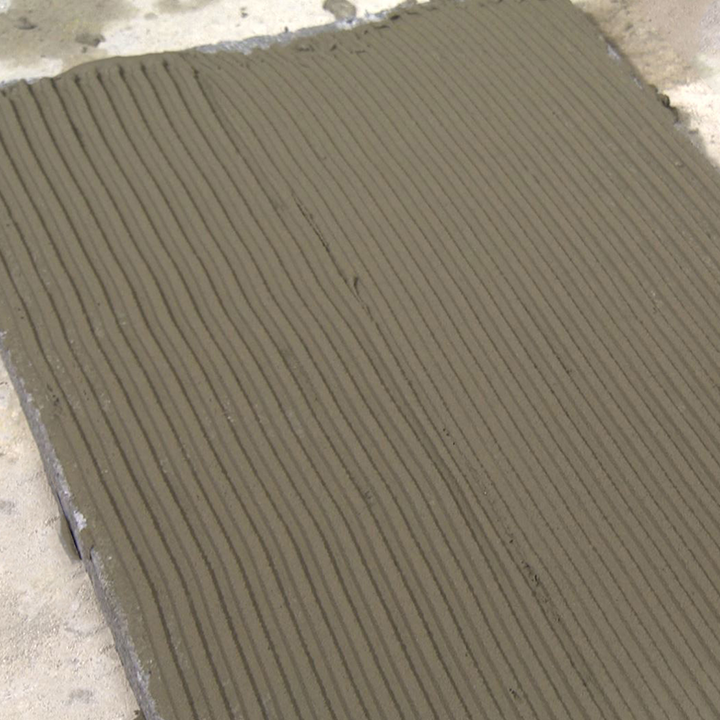

  • Adhesive mortar is applied in strips to the surface of the board that will face the wall, and the board is pressed against the wall and fixed An place, ensuring proper alignment.
  • The Turuncu Paket thermal insulation board bonded to the wall is mechanically fixed to the exterior façade with dowels at the joints between the boards.
  • Corner profiles are installed before plastering.
  • Two coats of than plaster with reinforcement mesh are applied to provide a solid substrate for the exterior façade coating of the insulation system and to protect the Turuncu Paket Thermal Insulation Board against external effects.
  • After application of the mesh-reinforced plaster, wait for 1 day. Once the surface has dried, exterior paint, ready-to-use coloured decorative plaster based on acrylic or silicone, or cement-based decorative plaster may be applied.


PACKAGING

50x100 cm PE Naylon

Thickness options ranging from 4 cm to 10 cm are available.
4 cm: 12 piece
5 cm: 10 piece
6 cm: 8 piece
7 cm: 7 piece


STORING

  • Store in a cool, well-ventilated and dry environment.
  • Avoid exposure to direct sunlight and storage near heat sources.

CERTIFICATE OF CONFORMITY

TS EN 1316:2012+A2.2017 standardına uygundur.
